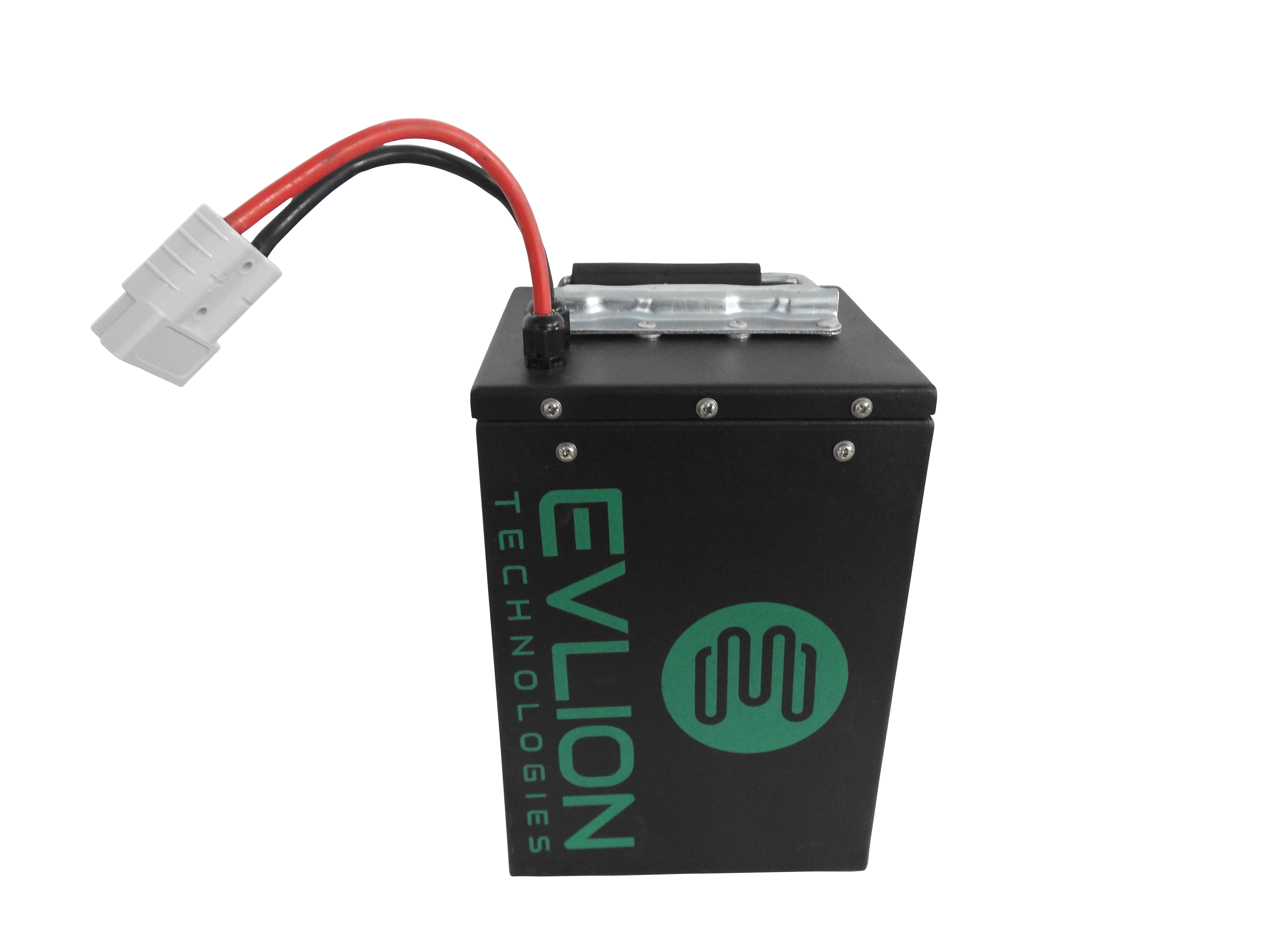

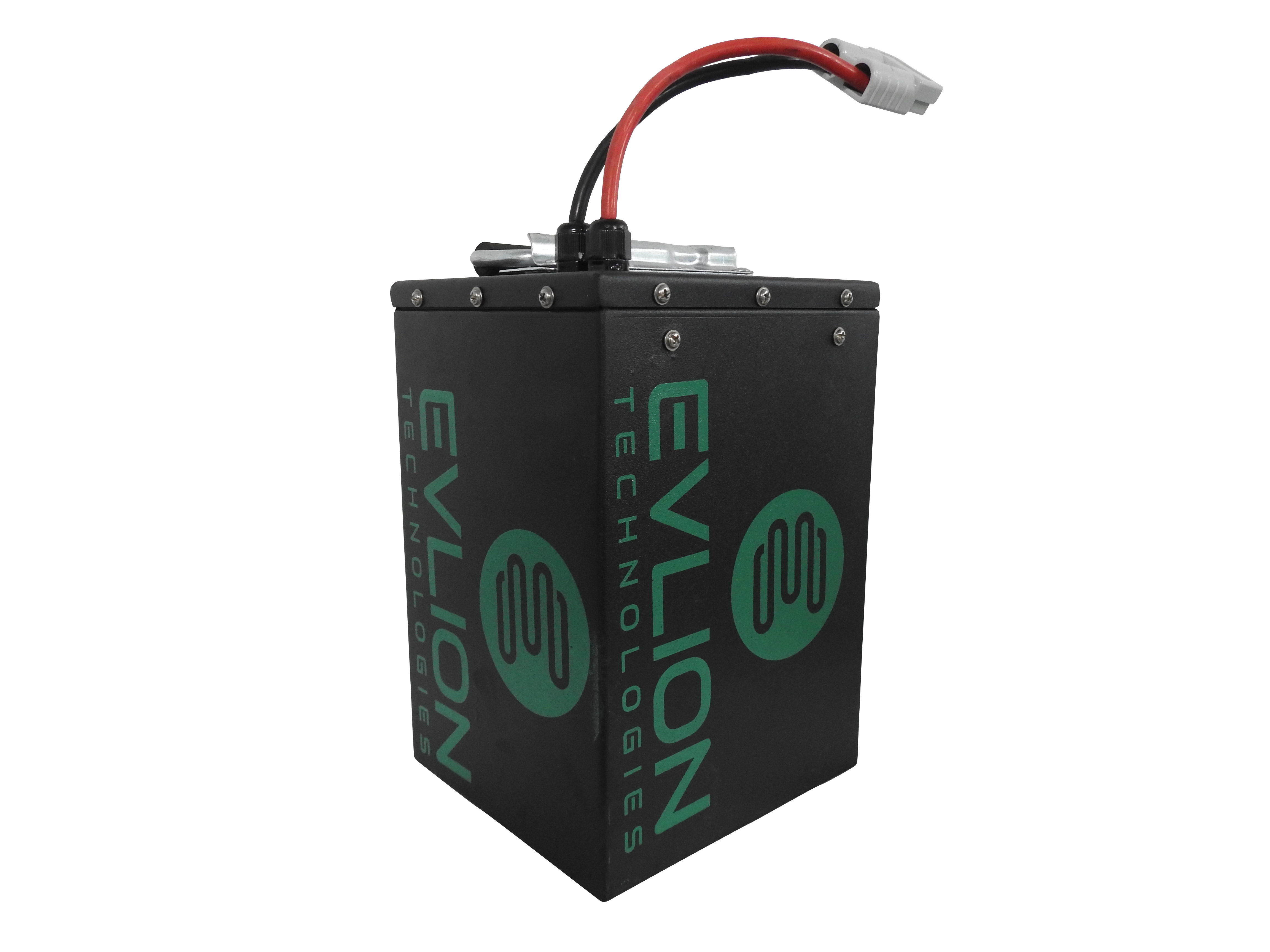

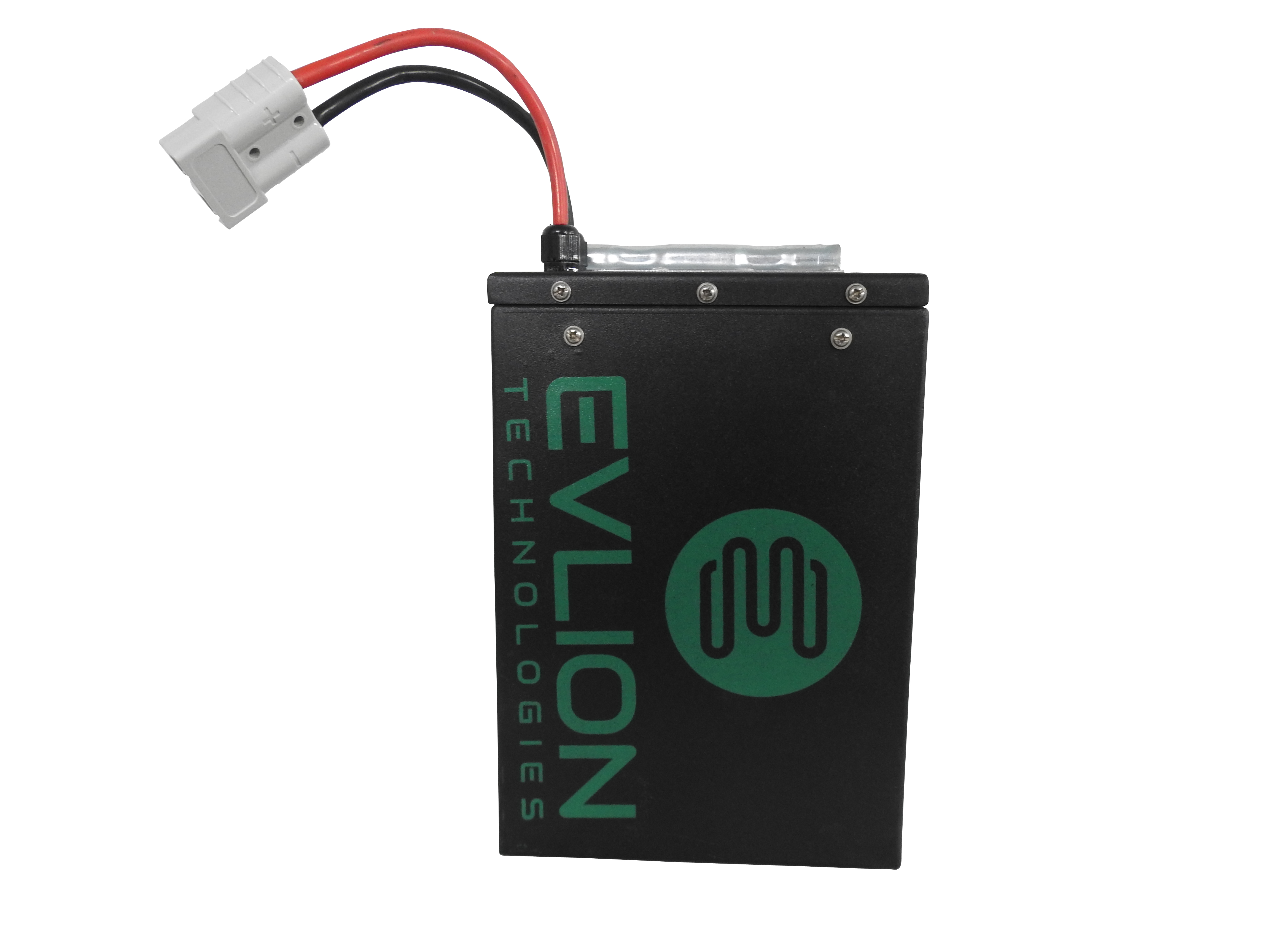

EVLION 25Ah/48V E-Scooter/E-Bike Lithium Battery

Category: Spare Parts

₹24,500.00

Color:

Deliver to

Check

VEHICLE TYPE	E-SCOOTER, E-BIKE
BATTERY CHEMISTRY	NMC
BATTERY NOMINAL VOLTAGE	48V
BATTERY CAPACITY	25AH
CYCLE LIFE @ 80%DOD (STANDARD CONDITIONS)	1500 CYCLES
BATTERY WEIGHT	10 kgs
BATTERY DIMENSIONS (+/-5%)(L x W x H, in mm)	165 x 165 x 245
BMS PROTECTED	YES (40A BMS)
CHARGING CUTOFF VOLTAGE	54.6V
DISCHARGING CUTOFF VOLTAGE	35.75V
MAX. CHARGING CURRENT	20A
MAX. CONTINUOUS DISCHARGING CURRENT	75A / 40A (BMS)
BURST MODE DICHARGING CURRENT (FOR 10 SEC)	125A / 120A (BMS)
MAXIMUM CONTINUOUS DISCHARGE POWER	1920 W
SHORT CIRCUIT PROTECTION	YES
OVERCHARGE PROTECTION	YES
OVER DISCHARGE PROTECTION	YES
CELL TYPE	CYLINDERICAL
TEMPERATURE	YES 60⁰C CUT OFF
WARRANTY	3 YEARS / 1500 LIFECYCLES WHICHEVER IS EARLIER
ADDITIONAL FEATURES (OPTIONAL)	SMART BMS WITH BLUETOOTH (with UART, RS285, CAN Comm.), GPS TRACKING, REMOTE IMMOBILIZATION
